Automatic plastic sheet bending machine for materials of 0,2 to 1,5 mm and a 1350 mm length.
Equipped with 2 adjustable automatic bending lines with angle setting by protractors.
Very fast and very easy to operate with a perfect result.
Product information
| Type | AFF-D 135 |
|---|---|
| Process | Plastic bending |
| Machine type | Bending machine |
| Model type | Floor model |
| Construction | 2 automatic bending lines |
| Bending method | Automatic |
| Bending lines | Multiple lines |
| Heating method | Single sided |
| Working length | 1350 mm. |
| Working thickness | 0,2 - 1,5 mm. |
| Upper heating | 2 contact heating lines |
| Modular extendable | No |
| Distance between 2 bends | 50 - 460 mm. |
| Number of clamps | 2 |
| Electrical usage | 1200 Watt |
| Connection voltage | 230 Volt |
| Dimensions (LxWxH) | 1560x880x740 mm. |
| Weight | 175 kg. |
AFF-D 135
The Shannon AFF-D is a highly productive automatic sheet bending machine for handling thin plastic sheets.
Multiple sheets can be bent in one go, or one sheet up to a length of 135 cm can be bent in one go.
The AFF-D is equipped with 2 heating contact swords, the temperature and contact time of these teflon coated swords are very precisely adjustable electronically.
The contact swords are replaceable with swords of different sizes, depending on the desired radius of the bends. The time controlled upper frame is equipped with an adjustable pressure bar.
The machine is also equipped with vacuum system that keeps the sheets in place and flat during heating, bending and cooling. The bending cycle is started by a foot switch. After which, the sheets are automatically heated, bent and cooled in the set time. Each bending line has a protractor to set the correct bending angle.
The machine comes standard on a mobile underframe with brakes for an ideal working height.
€17.050,00
- 3 years warranty & CE certified
- Pay with Bitcoin and get 10% discount
- Made in Holland
- Free packaging on orders >€1.500,- ordered from Webshop
- Automatic bending machine
Suggested accessories for this product
-
Teflon coated heating sword
Teflon coated heating swords for automatic bending machines AFF, AFF-D and FBM. The teflon coated heating swords are available with contact strips of 2 mm. upto 10 mm. width. The swords are available in 500, 650 and 1350 mm. long working length.
Suitable for:- AFF
- AFF-D
- FBM
-
Pressure bars
These complete clamping bars can be added to our double sided bending machines. Holding sheets flat during the heating process will give the best straight bending result. Complete with aluminium and steel bars and all needed connections.
Suitable for:- ABM-D
- AFF
- AFF-D
- HRK
- HRM
- HRP
- HRP-D
- HRP-S
-
Mobile underframe | bending machines
Mobile under frame with brakes for our table model plastic sheet bending machines. The frame can easily be moved around with the machine on an ideal working height; 96 cm. There is a place to place the pneumatic control box.
Suitable for:- AFF
- AFF-D
- HR
- HRK
- HRT
- X-WIRE
-

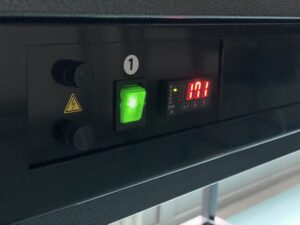

Temperature control units | AFF
