Very productive automatic plastic sheet bending machine of 3000 mm. working length.
Comes with time controlled top frame, auto-feeding and conveyor belt system.
Upto 8 temp. controllers for 4 top, 4 bottom heating lines and 4 pressure bars.
Product information
| Type | HRP-D |
|---|---|
| Process | Plastic bending |
| Machine type | Bending machine |
| Bending method | Automatic, Manual |
| Bending lines | Multiple lines |
| Heating method | Double sided |
| Under heating | upto 4 heating lines |
| Upper heating | upto 4 heating lines |
| Modular extendable | Yes |
| Distance between 2 bends | 20 - 950 mm. |
| Working length | 3000 mm. |
| Working thickness | 1,0 - 12,0 mm. |
| Maximum thickness | 25,0 mm. |
| Connection voltage | 400 Volt |
| Electrical usage | upto 8 kW. |
| Dimensions (LxWxH) | 3390x1300x1720 mm. |
| Weight | 750 kg. |
HRP-Di (2025) Showroom offer
Our most advanced machine is for sale from our Showroom. The Shannon HRP-Di is a highly productive and heavy duty semi-automatic plastic sheet bending machine with double side heating. Equipped with 8 heating lines (4 upper and 4 lower) that are adjustable in height and can be digital controlled in temperature. The HRP-D is designed to handle large sheets but also large series of smaller sheets thanks to the automatic feeding and transport system. The upper frame is time controlled and has one or multiple roller tracks next to the heating lines that hold the sheets in place and prevent warping (banana effect). The durable heat resistant worktop consists of multiple adjustable panels, adjustable conveyor belt and has a double parallel stop with inch and millimetre indication. The machine like most of our machines modular built so that it can be easily extended later with multiple heating profiles and/or control units. The machine features a moveable touch screen module to operate the plastic bending machine, save settings, products and more.
Original price was: $45.108,42.$34.273,72Current price is: $34.273,72.
- 3 years warranty & CE certified
- Pay with Bitcoin and get 10% discount
- Made in Holland
- Free packaging on orders >€1.500,- ordered from Webshop
Suggested accessories for this product
-

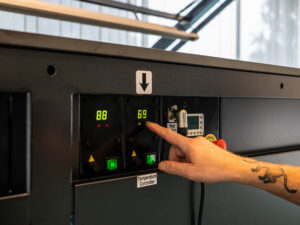

Temperature control units
Single and double units can control the temperature of 1 or 2 heating wires. Our bending machines are internally prepared to easily upgrade with more control units. The digital controllers have a safety that prevent the heating-wire from burning.
Suitable for:- HRK
- HRM
- HRP
- HRP-D
- HRP-S
- HRT
- HRT-D
- X-WIRE
-
Top heating profile | Multiple wire
With multiple wire heating profiles you can create a wider heating zone. This is used for bending a big radius or thicker materials. For bending the maximum thickness materials double side heating is needed with top and bottom heating profiles.
Suitable for:- HRK
- HRP
- HRP-D
- HRP-S
-
Pick&Place module
Optimze your production with our highly efficient Pick&Place module, designed to place up to 300 sheets one by one. Including timer function, user friendly touch screen with memory function. The module can be added to all models HRT-D and HRP-D machines. One person can operate the full process!
Suitable for:- HRP-D
- HRT-D
-
Working length adjusting set
This working length adjusting set is used to create partially cold or hot zones without covering the heating wire. The temperature can still be adjusted as required. The unique set can be connected to all our heating wire plastic sheet bending machines.
Suitable for:- ABM-D
- HR
- HRK
- HRM
- HRP
- HRP-D
- HRP-S
- HRT
- HRT-D
- X-WIRE
-
Bottom heating profile | Single wire
These single wire heating profiles can be added to most of our plastic bending machines. With multiple single wire heating profiles you can create multiple bends in a single proces. These single wire profiles can also be ordered for replacement.
Suitable for:- HR
- HRK
- HRM
- HRP
- HRP-D
- HRP-S
- HRT
- HRT-D
-
Foil Bending Profile | single contact
Teflon coated foil bending profiles with a single contact available from 500 upto 1500 mm. length. Ideal for bending very thin plastic sheets and foamed PVC perfectly. Populair accessory for all our plastic sheet bending machines.
Suitable for:- ABM-D
- HR
- HRK
- HRM
- HRP
- HRP-D
- HRP-S
- HRT
- HRT-D
-
Cooling fixture | VMD
The cooling fixture VMD is a 3 meter long fixture to go perfect with our HRT-D and HRP-D conveyor belt bending machines. The cooling fixture is easily convertible for cooling sheets in the most common display shapes, like T-, L-, U-Displays.
Suitable for:- HRK
- HRP
- HRP-D
- HRP-S
- HRT
- HRT-D
-
Bottom heating line | Multiple wire
With multiple wire heating profiles you can create a wider heating zone. This is used for bending a big radius or thicker materials. For bending the maximum thickness materials double side heating is needed with top and bottom heating profiles.
Suitable for:- HRK
- HRP
- HRP-D
- HRP-S
- HRT
- HRT-D
-

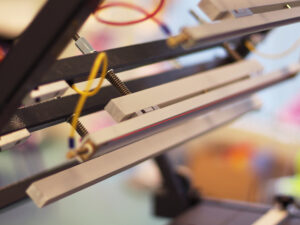

Top heating profile | Single wire
These single wire top heating profiles can be added to most of our double sided bending machines. With top heating profiles you can heat faster and reduce stress in the plastic sheet. These single wire upper profiles can also be ordered for replacement.
Suitable for:- ABM-D
- HRK
- HRP
- HRP-D
- HRP-S
Other suggested products
-
Pick&Place module
Optimze your production with our highly efficient Pick&Place module, designed to place up to 300 sheets one by one. Including timer function, user friendly touch screen with memory function. The module can be added to all models HRT-D and HRP-D machines. One person can operate the full process!
-
HRPi
Heavy constructed plastic bending machines with double side heating for bending upto 25 mm sheets. This plastic bender is available in 2200 and 3000 mm working length. Can be upgraded upto 4 over 4 heating lines and 8 heating lines can be used simultaneously.
-
HRT-Di
Very productive plastic sheet bending machine of 3000 mm. working length. Comes with auto-feeding and conveyor belt. Equipped with or modular extendable upto 4 temperature controllers for 4 heating lines and 4 clamping roller-tracks.
-

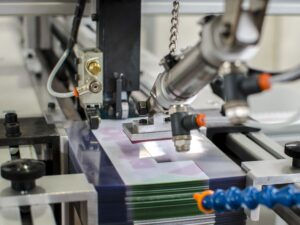

DA
